De- & monteermachine A-HA-1000

De- & monteermachine A-HA-1000

Prijsklasse: €849.00 tot €1,199.00

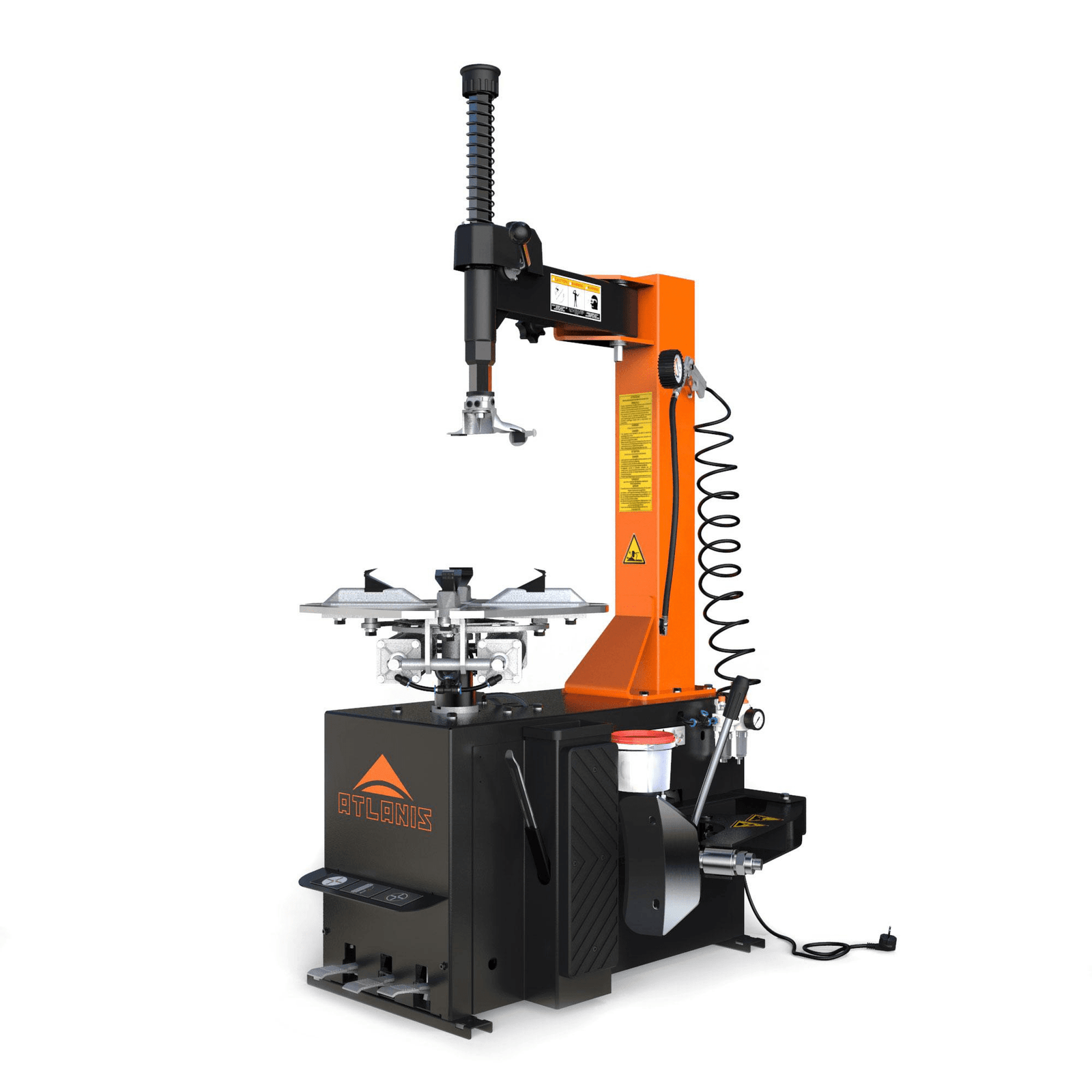

The ATLANIS tire changer for tires up to 23 inches is very modern and can be used with rim sizes up to 23 inches. The clamping system of the tire changer automatically centers itself. To protect the rims during mounting, plastic sliders are attached to the clamping jaws.

Artikelnummer: 1132 Categorie:

Beschrijving

The ATLANIS tire changer for tires up to 23 inches is very modern and can be used with rim sizes up to 23 inches. The clamping system of the tire changer automatically centers itself. To protect the rims during mounting, plastic sliders are attached to the clamping jaws.

Aanvullende informatie

Installatie

Met installatie (+€350,00), Zonder installatie (+€0,00)

Technical Specifications

Drive type

Drive type:Electromechanical

Number of revolutions

Speed (rpm):7

Busy

Working pressure (bar/psi):8 - 10 / 116 - 145

Electricity

Motor torque 1Ph 230V at a speed max. (Nm):1200
Motor power (kW) Assembly speed (levels):
1Ph 110V single speed:0.75 (1)

Electricity grid

Fuse (electrical) (A):16
Electrical connection:1P+N+PE
Frequency (Hz):50
Voltage (V):230

Colour

Colour:Orange & black

Sound

Sound level dB(A):70

Installation

Anchor type:
Fastening material:HILTI HST M10X90/10 mechanical plugs

Dimensions (mm/inch)

Max. wheel width:350/15
Max. wheel diameter:960/37,7953

Tire changer

Release area (mm):75 - 305
Trigger type:Firm
AIR-SHOCK system (A):Not available
Inflation pressure (bar/psi):3.5/50
Set 3.5 bar:10 - 21
Outer clamping area:A-HA-900R
Auxiliary arm(s):11 - 23
Inner clamping area: LeverNot available
-free mounting:Not available
Wheel jack (kg):Not available
Speed switch:No
Adjustable clamping jaws:3200/31.38

To steer

To steer:Electronic, pneumatic

Weight (kg)

Product weight:166
Shipping weight:196

Article dimensions (mm)

Width:781
Height:1526
Depth:908

Packaging dimensions (mm)

Length:990
Width:750
Height:860
